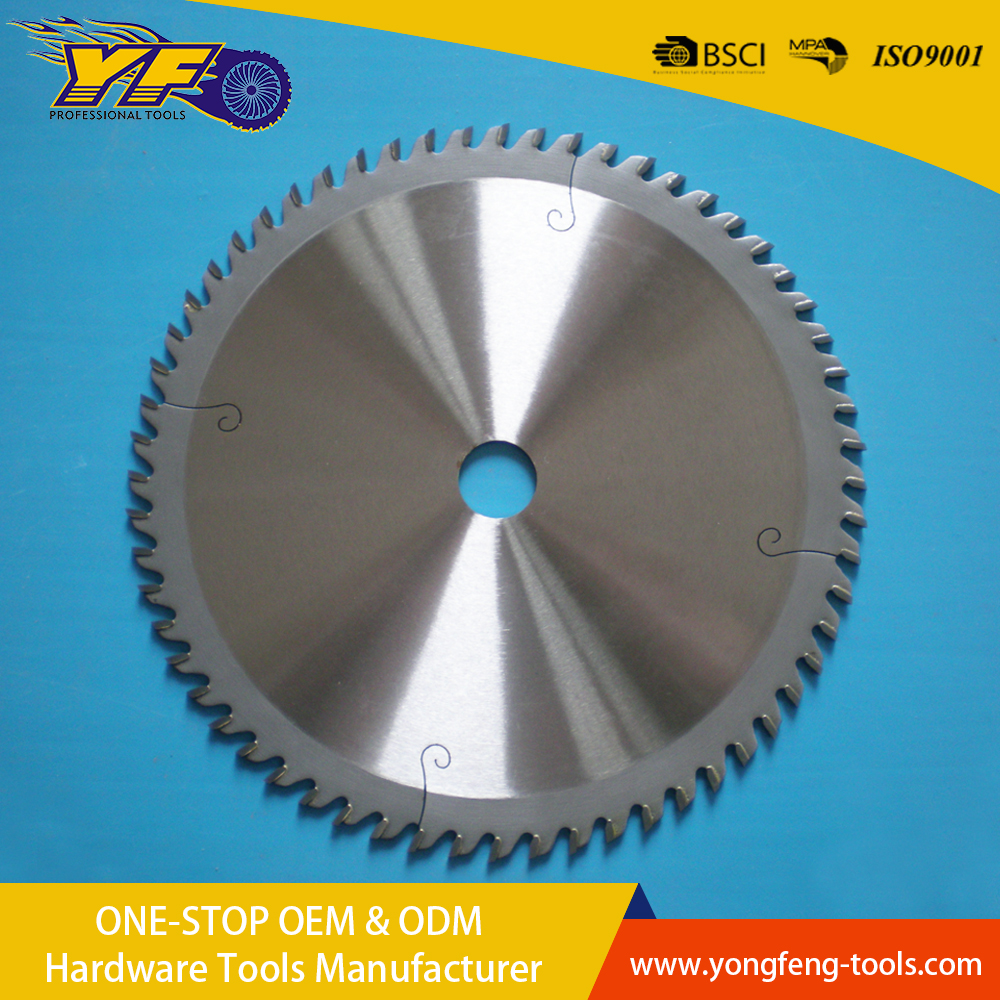

TCT SAW blade for cutting aluminium

The TCT aluminum cutting blades are designed for electrolytic aluminum plant and other aluminum process plant to cut aluminum ingot. The teeth number and hook angle could adjustable upon request.

Send Inquiry

Specification

Inch size	Metric size	Body Thickness(mm)	Arbor size(mm)
9"	230X24T	1.8	25.4/30
	230X30T	1.8	25.4/30
	230X40T	1.8	25.4/30
	230X48T	1.8	25.4/30
	230X56T	1.8	25.4/30
	230X60T	1.8	25.4/30
	230X80T	1.8	25.4/30
	230X100T	1.8	25.4/30
10"	255X24T	1.8	25.4/30
	255X30T	1.8	25.4/30
	255X40T	1.8	25.4/30
	255X48T	1.8	25.4/30
	255X60T	1.8	25.4/30
	255X72T	1.8	25.4/30
	255X80T	1.8	25.4/30
	255X84T	1.8	25.4/30
	255X96T	1.8	25.4/30
	255X100T	1.8	25.4/30
	255X120T	1.8	25.4/30
12"	300X24T	2	25.4/30
	300X30T	2	25.4/30
	300X40T	2	25.4/30
	300X48T	2	25.4/30
	300X60T	2	25.4/30
	300X72T	2	25.4/30
	300X80T	2	25.4/30
	300X84T	2	25.4/30
	300X96T	2	25.4/30
	300X100T	2	25.4/30
	300X108T	2	25.4/30
	300X120T	2	25.4/30
