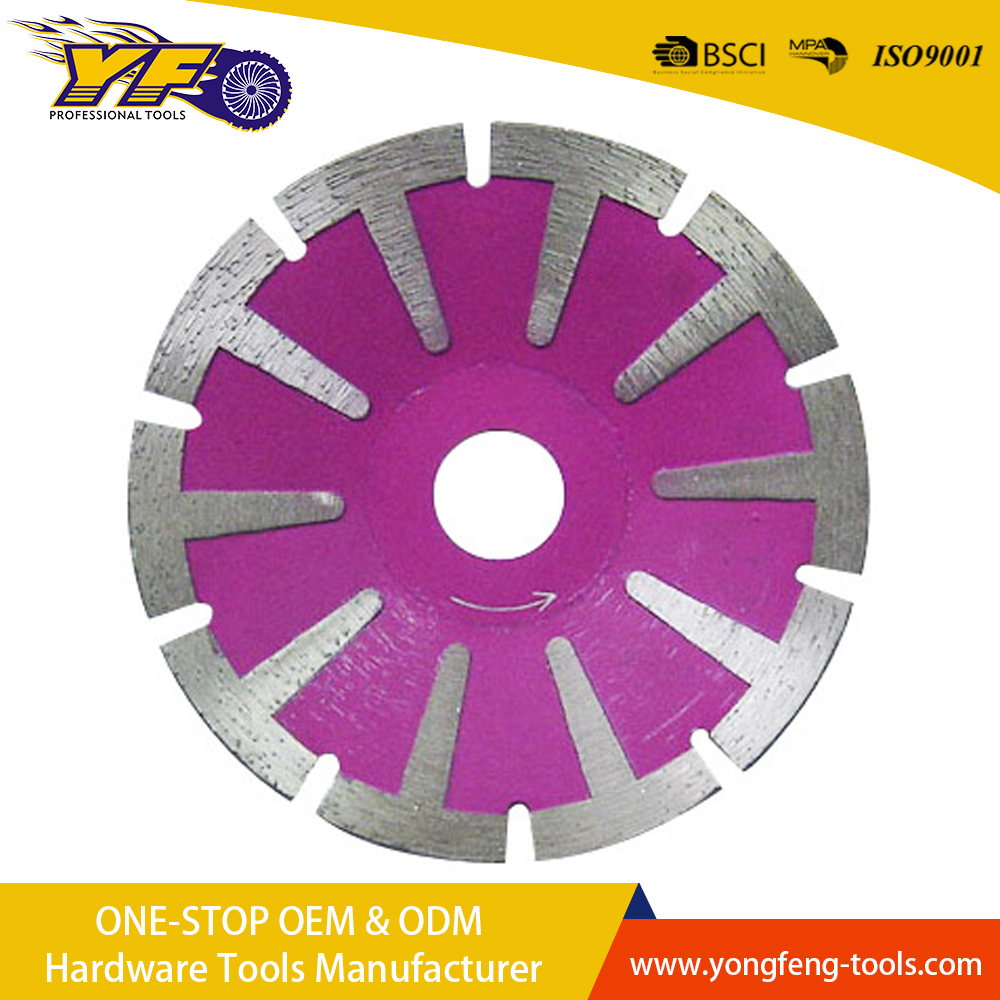

Concave Blade
|
Diamond concave cutting saw blade is for cutting circles or curved line on the slab, countertops, etc. the protection on the both in-and-out side provides faster cutting on kinds of hard stone,granite,hard material. For radius cutting, a concave blade is always the way to go. These curved blades as our other small diameter blades to give smooth and fast cuts. The segmented concave blade gives the longest life, while the turbo concave blade has the most speed in harder stones. The brazed concave blade is best for marbles and travertine. Concave blades can save time and money versus traditional diamond blades. |
| Diameter（inch/mm） | Segment Width(mm) | Segment Height(mm) | Arbor Hole |
| 4”/100 | 2.4/2.6/2.8 | 8 or 10 | 20.0/22.23 |
| 4-3/8” / 110 | 2.4/2.6/2.8 | 8 or 10 | 20.0/22.23 |
| 4.5”/115 | 2.6/2.8 | 8 or 10 | 20.0/22.23 |
| 5”/125 | 2.8 | 8 or 10 | 20.0/22.23 |
| 6”/150 | 2.8/3.0 | 8 or 10 | 20.0/22.23 |
| 7”/180 | 2.8/3.0 | 8 or 10 | 20.0/22.23 |
| 8”/200 | 3.0/3.2 | 8 or 10 | 20.0/22.23 |
