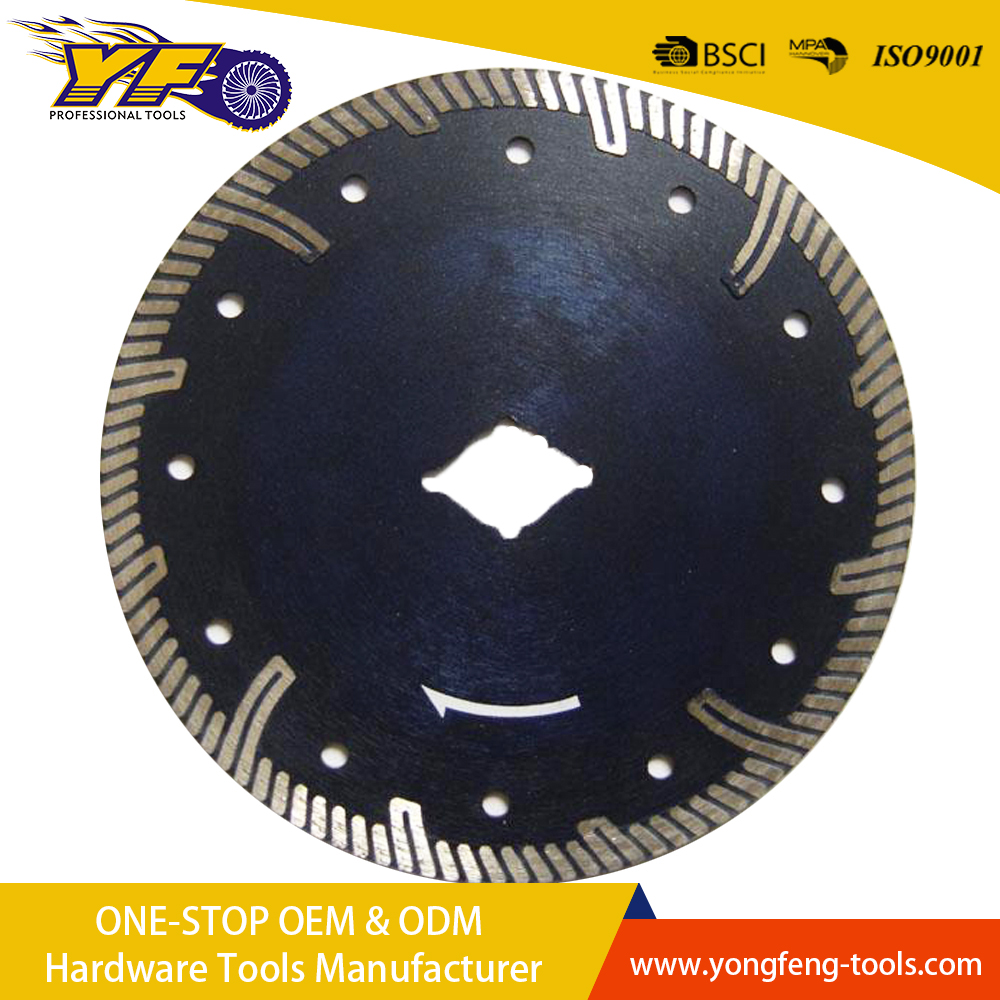

Turbo Rim Diamond Blade with rhombus hole

T-Segment Blades for Block have T-Shaped segments that are embedded in the steel core for maximum core strength. This feature helps prevent bending during cutting. T-Segment Blade for Block are used with high speed power saws, masonry saws and tile saws for cutting tile, brick, granite, concrete, and other masonry materials.Dry and wet use.For Deep T segment is uniquely designed to protect core from abrasion and undercutting.

Send Inquiry

  • Specification

Diameter Segment Width Segment Height Arbor Hole
(inch/mm) (mm) (mm) (mm)
4”/100 2.1 5/7/8/10 16/20/22.23
4.5”/115 2.1 5/7/8/10 16/20/22.23
5”/125 2.1 5/7/8/10 20.0/22.23
6”/150 2.3 5/7/8/10 20.0/22.23
7”/180 2.4 5/7/8/10 22.23/25.4
8”/200 2.4 5/7/8/10 22.23/25.4
9”/230 2.6 5/7/8/10 22.23/25.4
10”/250 2.6 5/7/8/10 22.23/25.4
12”/300 2.8 5/7/8/10 22.23/25.4
14”/350 2.8 5/7/8/10 22.23/25.4
